Gangways/Access Ramps
  • Proprietary Tube with Rounded Outside Corners and Unique
    Wave Design
  • Centers from 12" to Suit Decking Options   ie Aluminum,
    composite, IPE`
  • Wide Range of Attachments available   ie Hinge on 1-3/8" SS
    Pin, 3" x 6" UHMW Rollers or 5th Wheel pivot etc
  • Marine Grade 6005A-T61 Aluminum Alloy ~Out Performs
    Older Alloys for Marine Environments
  • ADA Compliant Available  ~including Double Grabrail,
    Pickets @ 4" centers and Toekick
  • Live Loads up to 120#/sq ft
  • Gangways up to 30' available with removable handrail for
    easier shipping or remote installation locations Easy Ship
    Gangway

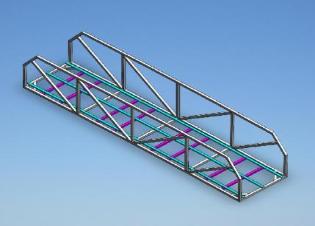

Heavy Duty ~ Up to 40' Long
  • Arched or Flat
  • Span: 5' to 40'
  • Width:  36" to 96"
  • Top of Handrail:  36" to 48"
  • Main Frame: 2" x 2" x 1/8"

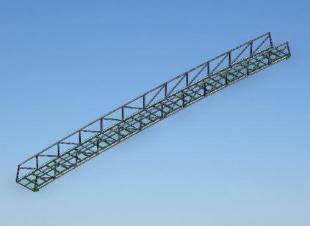

Extreme Duty ~ 41' and longer
  • Arched
  • Span: 41' to 100' Plus
  • Width: 48" to 72"
  • Top of Handrail: 42" to 48"
  • Massive 3" x 3" Tube and 3"
    I-Beam Main Frame
